·材 质：丁腈橡胶(NBR)
·颜色种类：黑色（B）
·温度范围：-40℃至+100℃或瞬间可耐热至120℃
·特 性：耐油，耐碱，耐酸，不含卤素，磷，镉
·防护等级：IP68

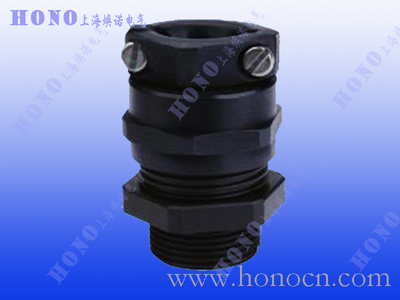

M制双锁紧尼龙电缆接头
订货号 Part NO. | 规格 | 电缆范围 | 螺纹外径 | 螺纹长度 | 本体高度 | 扳手径 | 包 装 |
黑色/Black | 灰色/Grey | Thread M | Range φ(mm) | AG(mm) | GL(mm) | H(mm) | Spanner(mm) | pcs |
HNM1408SB | HNM1408SG | M14x1.5 | 4.0 ~ 8.0 | 14.0 | 8.0 | 31 | 19 | 50 |
HNM1608SB | HNM1608SG | M16x1.5 | 4.0 ~ 8.0 | 16.0 | 8.0 | 31 | 19 | 50 |
HNM1610SB | HNM1610SG | 5.0 ~ 10.0 | 16.0 | 8.0 | 35 | 22 | 50 |
HNM1810SB | HNM1810SG | M18x1.5 | 5.0 ~ 10.0 | 18.0 | 8.0 | 35 | 22 | 50 |
HNM2012SB | HNM2012SG | M20x1.5 | 6.0 ~ 12.0 | 20.0 | 9.0 | 37 | 24 | 50 |
HNM2014SB | HNM2014SG | 10.0 ~ 14.0 | 20.0 | 10.0 | 38 | 27 | 50 |
HNM2214SB | HNM2214SG | M22x1.5 | 10.0 ~ 14.0 | 22.0 | 10.0 | 38 | 27 | 50 |
HNM2518SB | HNM2518SG | M25x1.5 | 13.0 ~ 18.0 | 25.0 | 10.0 | 42 | 33 | 50 |
HNM2718SB | HNM2718SG | M27x1.5 | 13.0 ~ 18.0 | 27.0 | 10.0 | 42 | 33 | 20 |
HNM3225SB | HNM3225SG | M32x1.5 | 18.0 ~ 25.0 | 32.0 | 12.0 | 50 | 41/42 | 20 |
HNM4032SB | HNM4032SG | M40x1.5 | 22.0 ~ 32.0 | 40.0 | 14.0 | 60 | 52/53 | 20 |
HNM5038SB | HNM5038SG | M50x1.5 | 32.0 ~ 38.0 | 50.0 | 14.0 | 61 | 60/61 | 4 |
HNM6344SB | HNM6344SG | M63x1.5 | 37.0 ~ 44.0 | 63.0 | 14.0 | 62 | 64/65 | 4 |
