.螺牙规格:M、PG、G、NPT，符合欧盟规范。
.产品材质:A.C.E.部分以UL认可之尼龙 PA66 制成，B、D部分采用NBR丁腈橡胶制成。
.颜色种类:黑色(B) RAL9005,灰色(G) RAL7035,其它颜色请咨询
.防护等级：IP68
.工作温度:-40℃至+100℃或瞬间可耐热至120℃。
.产品特性:特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。

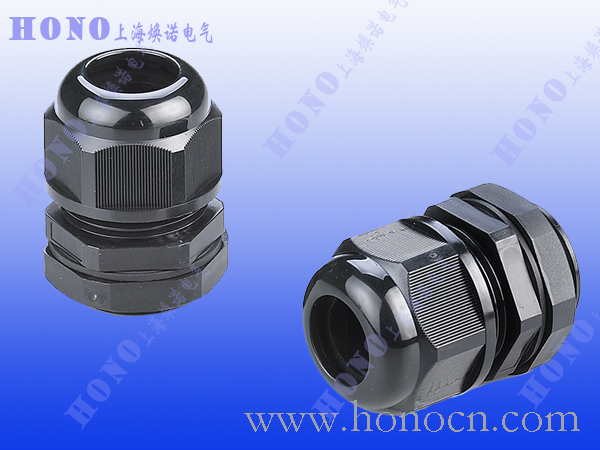

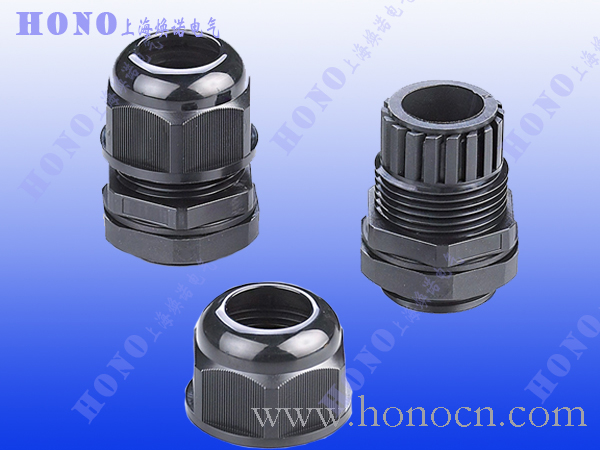

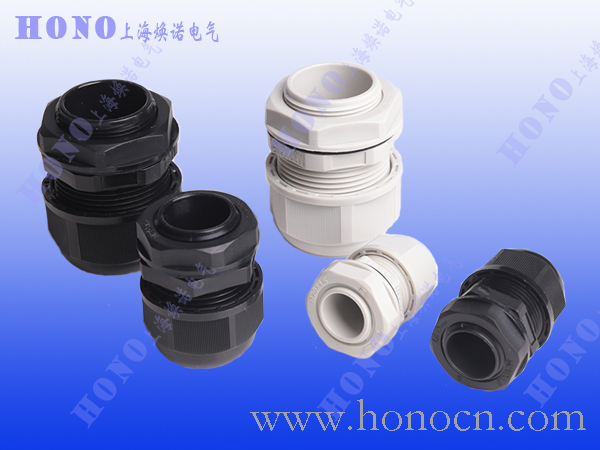

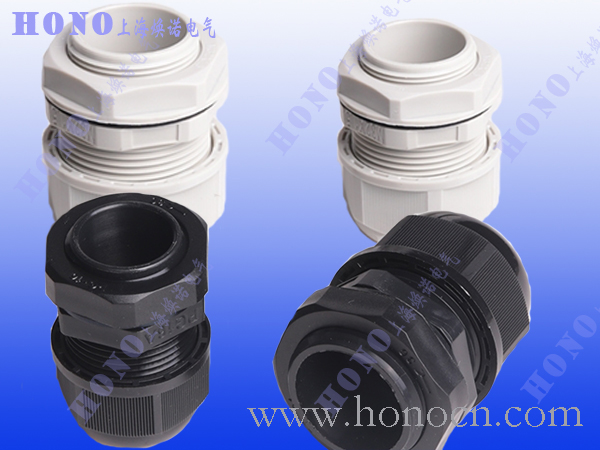

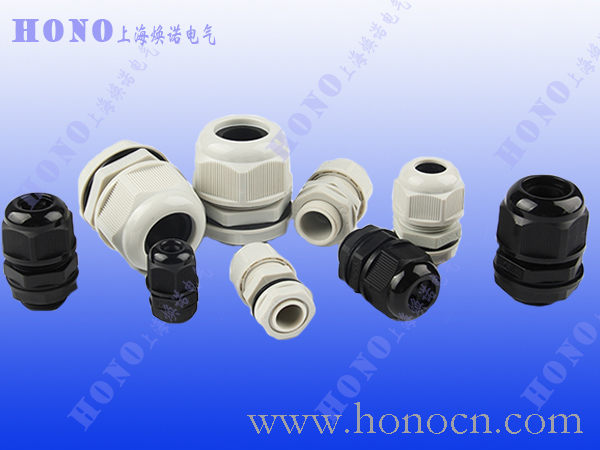

PG制连体尼龙电缆接头
订货号 Part NO. | 规格 | 电缆范围 | 螺纹外径 | 螺纹长度 | 扳手径 | 包 装 |
黑色/Black | 灰色/Grey | Thread PG | Range φ(mm) | AG(mm) | GL(mm) | Spanner(mm) | pcs |
HNPG7-5.5B | HNPG7-5.5G | PG7 | 3.0 ~ 5.5 | 12.5 | 8.0 | 17/19 | 50 |
HNPG7S-6.5B | HNPG7S-6.5G | 3.0 ~ 6.5 | 12.5 | 8.0 | 17/15 | 50 |
HNPG7-8B | HNPG7-8G | 4.0 ~ 8.0 | 12.5 | 8.0 | 17/19 | 50 |
HNPG9-5.5B | HNPG9-5.5G | PG9 | 3.0 ~ 5.5 | 15.2 | 8.2 | 22/19 | 50 |
HNPG9-8B | HNPG9-8G | 4.0 ~ 8.0 | 15.2 | 8.2 | 22/19 | 50 |
HNPG11-7B | HNPG11-7G | PG11 | 3.0 ~ 7.0 | 18.6 | 10.0 | 24/22 | 50 |
HNPG11-10B | HNPG11-10G | 5.0~ 10.0 | 18.6 | 10.0 | 24/22 | 50 |
HNPG13.5-9B | HNPG13.5-9G | PG13.5 | 5.0 ~ 9.0 | 20.4 | 10.0 | 27/24 | 50 |
HNPG13.5-12.5B | HNPG13.5-12.5G | 6.0 ~ 12.5 | 20.4 | 10.0 | 27/24 | 50 |
HNPG16-11B | HNPG16-11G | PG16 | 5.0 ~ 11.0 | 22.5 | 10.8 | 30/27 | 50 |
HNPG16-14B | HNPG16-14G | 8.5 ~ 14.0 | 22.5 | 10.8 | 30/27 | 50 |
HNPG19-11B | HNPG19-11G | PG19 | 5.0 ~ 11.0 | 24.0 | 11.0 | 30/27 | 50 |
HNPG19-14B | HNPG19-14G | 8.5 ~ 14.0 | 24.0 | 11.0 | 30/27 | 50 |
HNPG21-13B | HNPG21-13G | PG21 | 7.0 ~ 13.0 | 28.3 | 12.0 | 36/33 | 50 |
HNPG21-18B | HNPG21-18G | 12.5 ~ 18.0 | 28.3 | 12.0 | 36/33 | 50 |
HNPG25-20B | HNPG25-20G | PG25 | 14.0 ~ 20.0 | 30.0 | 13.0 | 36/37 | 50 |
HNPG29-22B | HNPG29-22G | PG29 | 14.0 ~ 22.0 | 37.0 | 12.0 | 46/41 | 20 |
HNPG29-25B | HNPG29-25G | 17.0 ~ 25.0 | 37.0 | 12.0 | 46/41 | 20 |
HNPG36-25.5B | HNPG36-25.5G | PG36 | 17.0 ~ 25.5 | 47.0 | 14.0 | 57/52 | 10 |
HNPG36-32B | HNPG36-32G | 24.0 ~ 32.0 | 47.0 | 14.0 | 57/52 | 10 |
HNPG42-32B | HNPG42-32G | PG42 | 25.0 ~ 32.0 | 54.0 | 15.0 | 64/62 | 10 |
HNPG42-41B | HNPG42-41G | 30.0 ~ 41.0 | 54.0 | 15.0 | 64/62 | 10 |
HNPG48-38B | HNPG48-38G | PG48 | 29.0 ~ 38.0 | 59.3 | 18.0 | 70/65 | 10 |
HNPG48-45.5B | HNPG48-45.5G | 35.0 ~ 45.5 | 59.3 | 18.0 | 70/65 | 10 |
