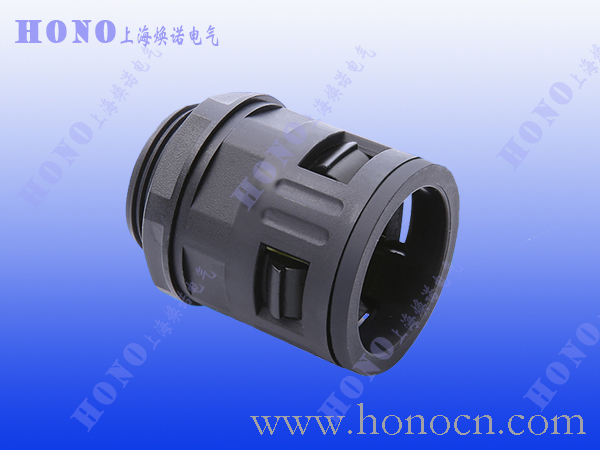

.螺牙规格:M、PG、G、NPT，符合欧盟规范 .产品材质:尼龙66、丁腈橡胶
.防护等级：IP54 .温度范围: -40℃至+115℃~150℃
.产品特性: 内锁扣和本体特殊设计，装卸只需要插拔，无需工具
注：特殊规格需要请联系工厂 公制螺纹 Metric Thread
订货号 Part NO. | 适配软管 | 螺纹规格 | D外径 | AG孔径 | 螺纹长度 | 主体高度 | 包 装 |
黑色/Black | 灰色/Grey | AD(mm) | Thread | D (mm) | (mm) | GL(mm) | H (mm) | pcs |
HN10.0-M10B | HN10.0-M10G | 10.0 | M10x1.5 | 10.0 | 6.5 | 10.0 | 23.0 | 100 |
HN10.0-M12B | HN10.0-M12G | M12x1.5 | 12.0 | 6.5 | 10.0 | 25.0 | 100 |
HN10.0-M16B | HN10.0-M16G | M16x1.5 | 16.0 | 6.5 | 10.0 | 25.0 | 100 |
HN11.6-M10B | HN11.6-M10G | 11.6 | M10x1.5 | 10.0 | 8.0 | 10.0 | 23.0 | 100 |
HN11.6-M12B | HN11.6-M12G | M12x1.5 | 12.0 | 8.0 | 10.0 | 25.0 | 100 |
HN13.0-M12B | HN13.0-M12G | 13.0 | M12x1.5 | 12.0 | 7.5 | 11.0 | 25.0 | 100 |
HN13.0-M16B | HN13.0-M16G | M16x1.5 | 16.0 | 10.0 | 10.0 | 25.0 | 100 |
HN13.0-M18B | HN13.0-M18G | M18x1.5 | 18.0 | 10.0 | 10.0 | 25.0 | 100 |
HN13.0-M20B | HN13.0-M20G | M20x1.5 | 20.0 | 10.0 | 10.0 | 25.0 | 100 |
HN15.8-M16B | HN15.8-M16G | 15.8 | M16x1.5 | 16.0 | 11.5 | 10.0 | 27.5 | 100 |
HN15.8-M18B | HN15.8-M18G | M18x1.5 | 18.0 | 12.0 | 10.0 | 27.5 | 100 |
HN15.8-M20B | HN15.8-M20G | M20x1.5 | 20.0 | 12.0 | 10.0 | 27.5 | 100 |
HN18.5-M20B | HN18.5-M20G | 18.5 | M20x1.5 | 20.0 | 14.3 | 12.0 | 28.0 | 50 |
HN21.2-M20B | HN21.2-M20G | 21.2 | M20x1.5 | 20.0 | 15.0 | 13.0 | 31.5 | 50 |
HN21.2-M24B | HN21.2-M24G | M24x1.5 | 24.0 | 18.0 | 13.0 | 31.5 | 50 |
HN21.2-M25B | HN21.2-M25G | M25x1.5 | 25.0 | 17.0 | 13.0 | 27.0 | 50 |
HN25.0-M25B | HN25.0-M25G | 25.0 | M25x1.5 | 25.0 | 19.5 | 14.0 | 29.0 | 50 |
HN28.5-M25B | HN28.5-M25G | 28.5 | M25x1.5 | 25.0 | 20.0 | 14.0 | 34.0 | 50 |
HN28.5-M27B | HN28.5-M27G | M27x2.0 | 27.0 | 20.5 | 14.0 | 34.0 | 50 |
HN28.5-M30B | HN28.5-M30G | M30x2.0 | 30.0 | 22.0 | 14.0 | 34.0 | 50 |
HN28.5-M32B | HN28.5-M32G | M32x1.5 | 32.0 | 22.0 | 14.0 | 34.0 | 50 |
HN34.5-M32B | HN34.5-M32G | 34.5 | M32x1.5 | 32.0 | 27.0 | 14.0 | 36.0 | 20 |
HN34.5-M36B | HN34.5-M36G | M36x2.0 | 36.0 | 29.0 | 14.0 | 36.0 | 20 |
HN34.5-M40B | HN34.5-M40G | M40x1.5 | 40.0 | 29.0 | 14.0 | 36.0 | 20 |
HN42.5-M40B | HN42.5-M40G | 42.5 | M40x1.5 | 40.0 | 34.0 | 14.0 | 38.0 | 10 |
HN42.5-M42B | HN42.5-M42G | M42x1.5 | 42.0 | 36.0 | 14.0 | 38.0 | 10 |
HN42.5-M48B | HN42.5-M48G | M48x2.0 | 48.0 | 36.0 | 14.0 | 38.0 | 10 |
HN54.5-M50B | HN54.5-M50G | 54.5 | M50x1.5 | 50.0 | 44.0 | 15.5 | 39.0 | 10 |
HN54.5-M60B | HN54.5-M60G | M60x2.0 | 60.0 | 48.0 | 15.5 | 39.0 | 10 |
HN54.5-M63B | HN54.5-M63G | M63x1.5 | 63.0 | 48.0 | 15.5 | 39.0 | 10 |
