.螺牙规格:PG、M、G、NPT，符合欧盟规范 .Thread:Metric,PG,G,NPT,EU Standard
.产品材质:尼龙66、丁腈橡胶 .Materials:PA66、NBR
.防护等级：IP54 .Protectiondegree:IP54
.温度范围: -40℃至+115℃ .Temperature Range:Min-40℃，Max: 115℃

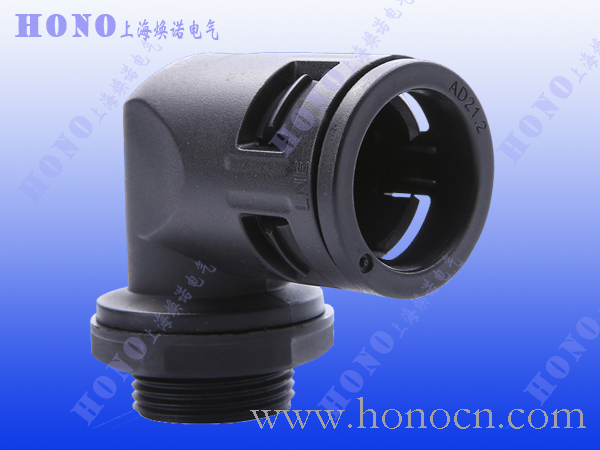

.产品特性: 内锁扣和本体特殊设计，装卸只需要插拔，无需工具
.Properties:Special design with inner locking buckle making the mounting anddismounting done by simple plugging or pulling,without using tools.
注：特殊规格需要请联系工厂 Note:The special specificationrequired,please contact the factory.
公制螺纹 Metric Thread
适配软管 | 型号 Part NO. | 螺纹规格 | I | C | E | F | 包 装 |
AD(mm) | 黑色/Black | 灰色/Grey | Thread | mm | mm | mm | mm | pcs |
10.0 | HN10.0-90-M12B | HN10.0-90-M12G | M12x1.5 | 9.0 | 10.0 | 32.0 | 16.0 | 100 |
HN10.0-90-M16B | HN10.0-90-M16G | M16x1.5 | 11.0 | 10.0 | 34.5 | 18.0 | 100 |
13.0 | HN13.0-90-M12B | HN13.0-90-M12G | M12x1.5 | 10.0 | 10.0 | 32.0 | 18.0 | 100 |
HN13.0-90-M16B | HN13.0-90-M16G | M16x1.5 | 11.6 | 10.0 | 34.5 | 20.0 | 100 |
HN13.0-90-M18B | HN13.0-90-M18G | M18x1.5 | 10.0 | 10.0 | 37.5 | 24.3 | 100 |
HN13.0-90-M20B | HN13.0-90-M20G | M20x1.5 | 13.0 | 10.0 | 37.5 | 24.3 | 100 |
15.8 | HN15.8-90-M16B | HN15.8-90-M16G | M16x1.5 | 12.0 | 10.0 | 37.5 | 24.3 | 100 |
HN15.8-90-M18B | HN15.8-90-M18G | M18x1.5 | 12.0 | 10.0 | 37.5 | 24.3 | 100 |
HN15.8-90-M20B | HN15.8-90-M20G | M20x1.5 | 15.0 | 10.0 | 37.5 | 24.3 | 100 |
18.5 | HN18.5-90-M20B | HN18.5-90-M20G | M20x1.5 | 16.0 | 11.5 | 43.5 | 27.0 | 50 |
21.2 | HN21.2-90-M20B | HN21.2-90-M20G | M20x1.5 | 15.0 | 13.0 | 49.0 | 31.0 | 50 |
HN21.2-90-M24B | HN21.2-90-M24G | M24x1.5 | 17.0 | 13.0 | 49.0 | 31.0 | 50 |
HN21.2-90-M25B | HN21.2-90-M25G | M25x1.5 | 16.0 | 13.0 | 49.0 | 31.0 | 50 |
25.0 | HN25.0-90-M25B | HN25.0-90-M25G | M25x1.5 | 19.5 | 13.0 | 52.0 | 32.0 | 50 |
28.5 | HN28.5-90-M25B | HN28.5-90-M25G | M25x1.5 | 19.5 | 13.0 | 57.0 | 34.0 | 50 |
HN28.5-90-M27B | HN28.5-90-M27G | M27x2.0 | 23.0 | 13.0 | 57.0 | 34.0 | 50 |
HN28.5-90-M30B | HN28.5-90-M30G | M30x2.0 | 23.0 | 13.0 | 57.0 | 34.0 | 50 |
34.5 | HN34.5-90-M32B | HN34.5-90-M32G | M32x1.5 | 27.0 | 14.5 | 64.0 | 43.0 | 20 |
HN34.5-90-M36B | HN34.5-90-M36G | M36x2.0 | 29.0 | 14.5 | 64.0 | 43.0 | 20 |
HN34.5-90-M40B | HN34.5-90-M40G | M40x1.5 | 30.0 | 14.5 | 64.0 | 43.0 | 20 |
42.5 | HN42.5-90-M40B | HN42.5-90-M40G | M40x1.5 | 35.0 | 14.5 | 72.0 | 50.0 | 10 |
HN42.5-90-M48B | HN42.5-90-M48G | M48x2.0 | 38.0 | 14.5 | 72.0 | 50.0 | 10 |
54.5 | HN54.5-90-M50B | HN54.5-90-M50G | M50x1.5 | 44.0 | 16.0 | 84.0 | 64.0 | 5 |
HN54.5-90-M60B | HN54.5-90-M60G | M60x2.0 | 53.0 | 16.0 | 84.0 | 64.0 | 5 |
HN54.5-90-M63B | HN54.5-90-M63G | M63x1.5 | 55.0 | 16.0 | 84.0 | 64.0 | 5 |
