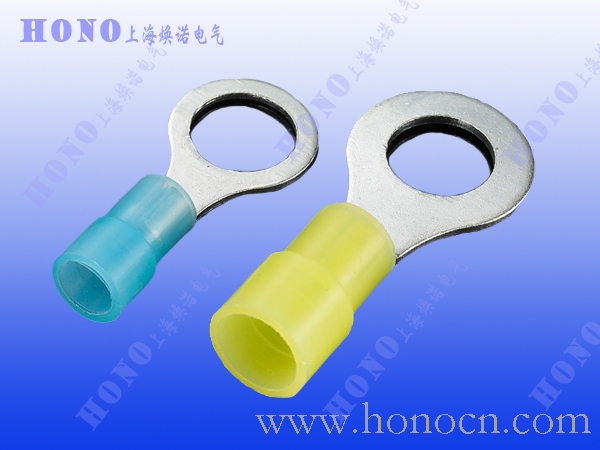

.圆形尼龙预绝缘端子 .绝缘材料：尼龙（PA66）
.端子材质：铜 .镀层：锡
订货号 Part NO. | STUD SIZE | 尺寸 IMENSION (mm) | 包装 pcs | 颜色 COLOR | 说明 EXPLANATION |

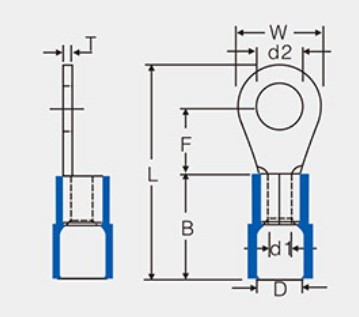

Metric | Ame | d2 | W | F | L | H | d1 | D | T |
HNRNY0.5-2 | 2 | #2 | 2.2 | 5.0 | 6.0 | 18.0 | 10.5 | 1.2 | 2.7 | 0.5 | 1000 | 黄色 Yellow | 端头材质：紫铜 绝缘材质：PA66 导线截面：0.2-0.5mm² 最大电流：Imax=9A 最大耐温：105℃ A.W.G.:(26-22) |
HNRNY0.5-2.7 | 2.5 | #3 | 2.7 |
HNRNY0.5-3.2 | 3 | #4 | 3.2 |
HNRNY0.5-3.7 | 3.5 | #6 | 3.7 | 6.0 | 8.0 | 20.5 |
HNRNY0.5-4 | 4 | #8 | 4.3 | 6.5 | 8.0 | 20.8 |
HNRNY0.5-5 | 5 | #10 | 5.3 | 8.0 | 8.0 | 21.5 |
HNRNY1.25-3.2 | 3 | #4 | 3.2 | 5.7 | 4.95 | 18.8 | 11.0 | 1.7 | 4.3 | 0.8 | 1000 | 红色 Red | 端头材质：紫铜 绝缘材质：PA66 导线截面：0.5-1.5mm² 最大电流：Imax=19A 最大耐温：105℃ A.W.G.:(22-16) |
HNRNY1.25-3.7S | 3.5 | #6 | 3.7 |
HNRNY1.25-3.7M | 3.5 | #6 | 3.7 | 6.6 | 6.3 | 20.6 |
HNRNY1.25-3.7L | 3.5 | #6 | 3.7 | 8.0 | 7.0 | 22.0 |
HNRNY1.25-4S | 4 | #8 | 4.3 | 6.6 | 6.3 | 20.6 |
HNRNY1.25-4L | 4 | #8 | 4.3 | 8.0 | 7.0 | 22.0 |
HNRNY1.25-5 | 5 | #10 | 5.3 |
HNRNY1.25-5L | 5 | #10 | 5.3 | 9.5 | 7.5 | 23.3 |
HNRNY1.25-6 | 6 | 1/4” | 6.5 | 11.6 | 11.2 | 28.0 |
HNRNY1.25-8 | 8 | 5/16” | 8.5 |
HNRNY1.25-8L | 8 | 5/16” | 8.5 | 13.6 | 13.9 | 31.7 |
HNRNY1.25-10 | 10 | 3/8” | 10.5 |
HNRNY1.25-12 | 12 | 1/2” | 13.0 | 19.2 | 16.0 | 36.6 | 11.0 | 1.7 | 4.3 | 0.8 | 500 |
HNRNY1.25-14 | 14 | 9/16” | 15.0 | 27.0 | 21.0 | 45.5 | 11.0 | 1.7 | 4.3 | 0.8 | 250 |
HNRNY1.25-16 | 16 | 5/8” | 17.0 |
HNRNY1.25-20 | 20 | 3/4” | 21.0 |
HNRNY2-3.2S | 3 | #4 | 3.2 | 5.5 | 4.8 | 18.6 | 11.0 | 2.3 | 4.8 | 0.8 | 1000 | 蓝色 Blue | 端头材质：紫铜 绝缘材质：PA66 导线截面：1.5-2.5mm² 最大电流：Imax=27A 最大耐温：105℃ A.W.G.:(16-14) |
HNRNY2-3.2 | 3 | #4 | 3.2 | 6.6 | 6.4 | 20.7 |
HNRNY2-3.7 | 3.5 | #6 | 3.7 |
HNRNY2-3.7M | 3.5 | #6 | 3.7 | 6.6 | 7.9 | 22.2 |
HNRNY2-3.7L | 3.5 | #6 | 3.7 | 8.5 | 7.75 | 23.0 |
HNRNY2-4S | 4 | #8 | 4.3 | 6.6 | 7.9 | 22.2 |
HNRNY2-4L | 4 | #8 | 4.3 | 8.5 | 7.75 | 23.0 |
HNRNY2-5S | 5 | #10 | 5.3 |
HNRNY2-5L | 5 | #10 | 5.3 | 9.5 | 7.5 | 23.3 |
HNRNY2-6 | 6 | 1/4” | 6.5 | 12.0 | 11.0 | 28.0 |
订货号 Part NO. | STUD SIZE | 尺寸 DIMENSION (mm) | 包装 pcs | 颜色 COLOR | 说明 EXPLANATION |
Metric | Ame | d2 | W | F | L | H | d1 | D | T |
HNRNY2-8 | 8 | 5/16” | 8.5 | 12.0 | 11.0 | 28.0 | 11.0 | 2.3 | 4.8 | 0.8 | 1000 | 蓝色 Blue | 端头材质：紫铜 绝缘材质：PA66 导线截面：1.5-2.5mm² 最大电流：Imax=27A 最大耐温：105℃ A.W.G.:(16-14) |
HNRNY2-8L | 8 | 5/16” | 8.5 | 13.6 | 13.9 | 31.7 |
HNRNY2-10 | 10 | 3/8” | 10.5 | 13.6 | 13.9 | 31.7 |
HNRNY2-12 | 12 | 1/2” | 13.0 | 19.2 | 16.0 | 36.6 | 11.0 | 2.3 | 4.8 | 0.8 | 500 |
HNRNY2-14 | 14 | 9/16” | 15.0 | 27.0 | 21.0 | 45.5 | 11.0 | 2.3 | 4.8 | 0.8 | 250 |
HNRNY2-16 | 16 | 5/8” | 17.0 |
HNRNY2-20 | 20 | 3/4” | 21.0 |
HNRNY5.5-3.2 | 3 | #4 | 3.2 | 7.2 | 5.9 | 22.5 | 13.0 | 3.4 | 6.7 | 1.0 | 500 | 黄色 Yellow | 端头材质：紫铜 绝缘材质：PA66 导线截面：4-6mm² 最大电流：Imax=48A 最大耐温：105℃ A.W.G.:(12-10) |
HNRNY5.5-3.7 | 3.5 | #6 | 3.7 |
HNRNY5.5-4S | 4 | #8 | 4.3 |
HNRNY5.5-4L | 4 | #8 | 4.3 | 9.5 | 8.85 | 26.6 |
HNRNY5.5-5 | 5 | #10 | 5.3 |
HNRNY5.5-6 | 6 | 1/4” | 6.5 | 12.0 | 10.5 | 29.5 |
HNRNY5.5-6M | 6 | 1/4” | 6.5 | 13.0 | 32.0 |
HNRNY5.5-8 | 8 | 5/16” | 8.5 | 15.0 | 13.5 | 34.0 |
HNRNY5.5-10 | 10 | 3/8” | 10.5 |
HNRNY5.5-12 | 12 | 1/2” | 13.0 | 19.2 | 16.0 | 38.6 |
HNRNY5.5-14 | 14 | 9/16” | 15.0 | 32.0 | 25.2 | 54.2 | 13.0 | 3.4 | 6.7 | 1.0 | 250 |
HNRNY5.5-16 | 16 | 5/8” | 17.0 |
HNRNY5.5-20 | 20 | 3/4” | 21.0 |
HNRNY8-3.7 | 3.5 | #6 | 3.7 | 8.0 | 9.3 | 29.3 | 16.0 | 4.5 | 8.0 | 1.2 | 250 | 红色 Red | 端头材质：紫铜 绝缘材质：PA66 导线截面：4-6mm² 最大电流：Imax=48A 最大耐温：105℃ A.W.G.:(12-10) |
HNRNY8-4S | 4 | #8 | 4.3 |
HNRNY8-5S | 5 | #10 | 5.3 | 8.8 | 9.3 | 29.7 |
HNRNY8-5M | 5 | #10 | 5.3 | 12.0 | 9.3 | 31.3 |
HNRNY8-5L | 5 | #10 | 5.3 | 15.0 | 13.8 | 37.3 |
HNRNY8-6S | 6 | 1/4” | 6.5 | 12.0 | 9.3 | 31.3 |
HNRNY8-6L | 6 | 1/4” | 6.5 | 15.0 | 13.8 | 37.3 |
HNRNY8-8 | 8 | 5/16” | 8.5 | 15.0 | 11.1 | 37.3 |
HNRNY8-10 | 10 | 3/8” | 10.5 |
HNRNY8-10L | 10 | 3/8” | 10.5 | 20.0 | 15.0 | 41.0 |
HNRNY8-12 | 12 | 1/2” | 13.0 |
