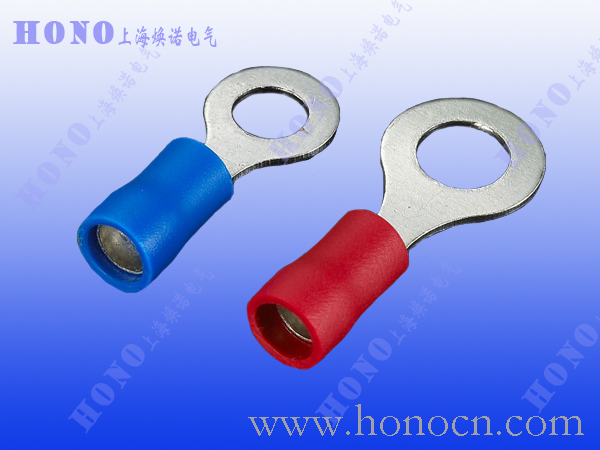

.双压接圆形PVC预绝缘端子 .绝缘材料：VINYL（PVC）
.端子材质：铜 .镀层：锡

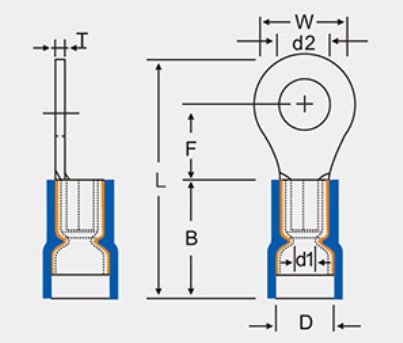

订货号 Part NO. | STUD SIZE | 尺寸 IMENSION (mm) | 包装 pcs | 颜色 COLOR |
Metric | Ame | d2 | W | F | L | H | d1 | D | T |
HNRD0.5-2 | 2 | #2 | 2.2 | 5.0 | 6.0 | 17.0 | 8.5 | 1.2 | 2.8 | 0.5 | 1000 | 黄色 Yellow |
HNRD0.5-2.7 | 2.5 | #3 | 2.7 |
HNRD0.5-3.2 | 3 | #4 | 3.2 |
HNRD0.5-3.7 | 3.5 | #6 | 3.7 | 6.0 | 8.0 | 19.5 |
HNRD0.5-4 | 4 | #8 | 4.3 | 6.5 | 8.0 | 19.8 |
HNRD0.5-5 | 5 | #10 | 5.3 | 8.0 | 8.0 | 20.5 |
HNRD1.25-3.2 | 3 | #4 | 3.2 | 5.7 | 4.95 | 17.8 | 10.0 | 1.7 | 4.5 | 0.8 | 1000 | 红色 Red |
HNRD1.25-3.7S | 3.5 | #6 | 3.7 |
HNRD1.25-3.7M | 3.5 | #6 | 3.7 | 6.6 | 6.3 | 19.6 |
HNRD1.25-3.7L | 3.5 | #6 | 3.7 | 8.0 | 7.0 | 21.0 |
HNRD1.25-4S | 4 | #8 | 4.3 | 6.6 | 6.3 | 19.6 |
HNRD1.25-4L | 4 | #8 | 4.3 | 8.0 | 7.0 | 21.0 |
HNRD1.25-5 | 5 | #10 | 5.3 |
HNRD1.25-5L | 5 | #10 | 5.3 | 9.5 | 7.5 | 22.3 |
HNRD1.25-6 | 6 | 1/4” | 6.5 | 11.6 | 11.2 | 27.0 |
HNRD1.25-8 | 8 | 5/16” | 8.5 |
HNRD1.25-8L | 8 | 5/16” | 8.5 | 13.6 | 13.9 | 30.7 |
HNRD1.25-10 | 10 | 3/8” | 10.5 |
HNRD1.25-12 | 12 | 1/2” | 13.0 | 19.2 | 16.0 | 35.6 | 10.0 | 1.7 | 4.5 | 0.8 | 500 |
HNRD1.25-14 | 14 | 9/16” | 15.0 | 27.0 | 21.0 | 44.5 | 10.0 | 1.7 | 4.5 | 0.8 | 250 |
HNRD1.25-16 | 16 | 5/8” | 17.0 |
HNRD1.25-20 | 20 | 3/4” | 21.0 |
HNRD2-3.2S | 3 | #4 | 3.2 | 5.5 | 4.8 | 17.6 | 10.0 | 2.3 | 5.0 | 0.8 | 1000 | 蓝色 Blue |
HNRD2-3.2 | 3 | #4 | 3.2 | 6.6 | 6.4 | 19.7 |
HNRD2-3.7 | 3.5 | #6 | 3.7 |
HNRD2-3.7M | 3.5 | #6 | 3.7 | 6.6 | 7.9 | 21.2 |
HNRD2-3.7L | 3.5 | #6 | 3.7 | 8.5 | 7.75 | 22.0 |
HNRD2-4S | 4 | #8 | 4.3 | 6.6 | 7.9 | 21.2 |
HNRD2-4L | 4 | #8 | 4.3 | 8.5 | 7.75 | 22.0 |
HNRD2-5S | 5 | #10 | 5.3 |
HNRD2-5L | 5 | #10 | 5.3 | 9.5 | 7.5 | 22.3 |
HNRD2-6 | 6 | 1/4” | 6.5 | 12.0 | 11.0 | 27.0 |
订货号 Part NO. | STUD SIZE | 尺寸 DIMENSION (mm) | 包装 pcs | 颜色 COLOR |
Metric | Ame | d2 | W | F | L | H | d1 | D | T |
HNRD2-8 | 8 | 5/16” | 8.5 | 12.0 | 11.0 | 27.0 | 10.0 | 2.3 | 5.0 | 0.8 | 1000 | 蓝色 Blue |
HNRD2-8L | 8 | 5/16” | 8.5 | 13.6 | 13.9 | 30.7 |
HNRD2-10 | 10 | 3/8” | 10.5 | 13.6 | 13.9 | 30.7 |
HNRD2-12 | 12 | 1/2” | 13.0 | 19.2 | 16.0 | 35.6 | 10.0 | 2.3 | 5.0 | 0.8 | 500 |
HNRD2-14 | 14 | 9/16” | 15.0 | 27.0 | 21.0 | 44.5 | 10.0 | 2.3 | 5.0 | 0.8 | 250 |
HNRD2-16 | 16 | 5/8” | 17.0 |
HNRD2-20 | 20 | 3/4” | 21.0 |
HNRD3.5-4 | 4 | #8 | 4.3 | 8.0 | 7.7 | 24.7 | 13.0 | 2.9 | 6.7 | 1.0 | 500 | 黑色 Black |
HNRD3.5-5S | 5 | #10 | 5.3 |
HNRD3.5-5L | 5 | #10 | 5.3 | 12.0 | 9.4 | 28.4 |
HNRD3.5-6 | 6 | 1/4” | 6.5 |
HNRD3.5-8 | 8 | 5/16” | 8.5 | 15.0 | 13.5 | 34.0 |
HNRD3.5-10 | 10 | 3/8” | 10.5 |
HNRD3.5-12 | 12 | 1/2” | 13.0 | 19.2 | 16.0 | 38.6 |
HNRD5.5-3.2 | 3 | #4 | 3.2 | 7.2 | 5.9 | 22.5 | 13.0 | 3.4 | 6.7 | 1.0 | 500 | 黄色 Yellow |
HNRD5.5-3.7 | 3.5 | #6 | 3.7 |
HNRD5.5-4S | 4 | #8 | 4.3 |
HNRD5.5-4L | 4 | #8 | 4.3 | 9.5 | 8.85 | 26.6 |
HNRD5.5-5 | 5 | #10 | 5.3 |
HNRD5.5-6 | 6 | 1/4” | 6.5 | 12.0 | 10.5 | 29.5 |
HNRD5.5-6M | 6 | 1/4” | 6.5 | 13.0 | 32.0 |
HNRD5.5-8 | 8 | 5/16” | 8.5 | 15.0 | 13.5 | 34.0 |
HNRD5.5-10 | 10 | 3/8” | 10.5 |
HNRD5.5-12 | 12 | 1/2” | 13.0 | 19.2 | 16.0 | 38.6 |
HNRD5.5-14 | 14 | 9/16” | 15.0 | 32.0 | 25.2 | 54.2 | 13.0 | 3.4 | 6.7 | 1.0 | 250 |
HNRD5.5-16 | 16 | 5/8” | 17.0 |
HNRD5.5-20 | 20 | 3/4” | 21.0 |
